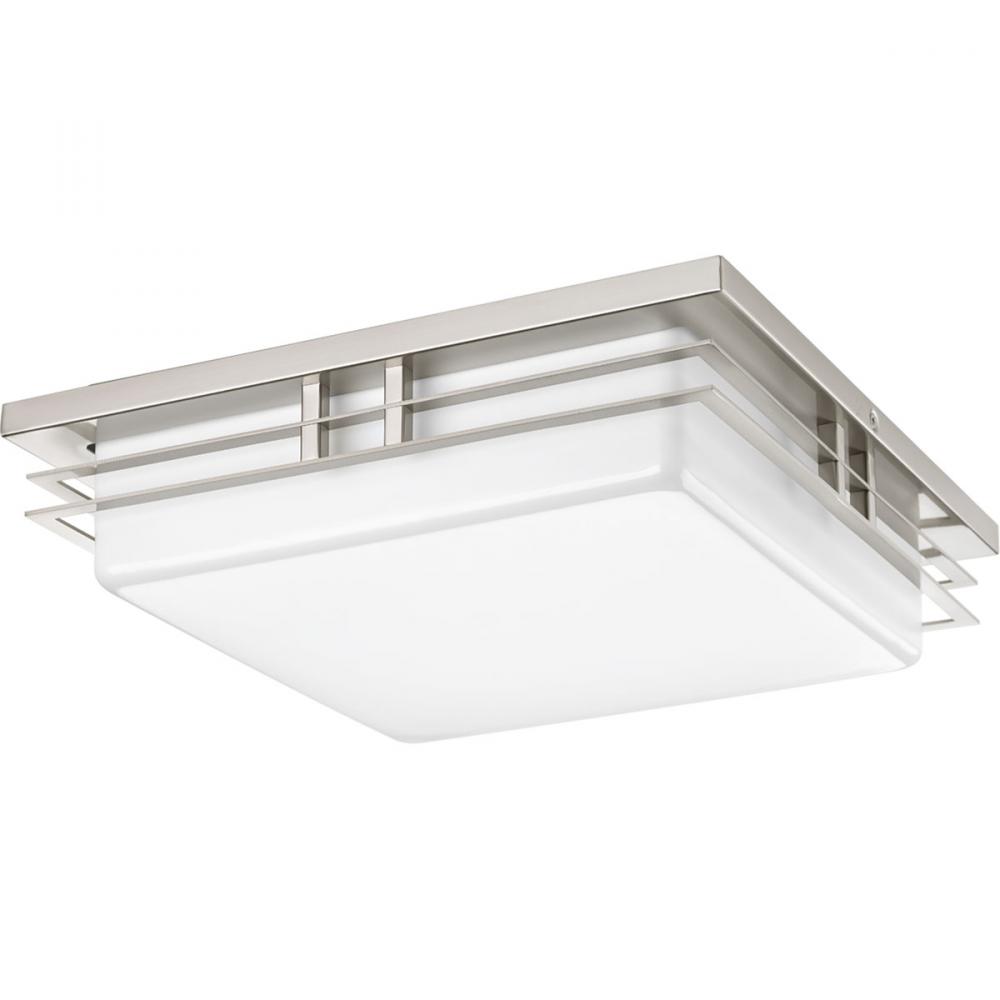

Helm Collection Two-Light 14" LED Flush Mount
Image may not reflect selected features
Helm Collection Two-Light 14" LED Flush Mount (P3448-0930K9)
Helm is a uniquely styled series with design flexibility. This contemporary square fixture has an acrylic diffuser with architectural detail. Can mount to ceiling or wall. Two-light 14" LED fixture in Brushed Nickel. 3000K, 90+CRI 1,211 Lumens 71.2 lumens/watt per module (source).
Downloads
Product Specification
Item #
P3448-0930K9
Dimensions
Height: 3.75"
Width: 14.00"
Length: 14.00"
Additional product details
Internal #
1RAFD
Category
Flush Mounts
Subcategory
Other Flush Mounts
Finish
Nickel
Style
Contemporary , Craftsman/Mission , Transitional
Option
ADA Compliant , Energy Efficient , Energy Star , Title 24 , Damp Rated , LED , Title 20
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Damp Rated
Category
Close-to-Ceiling
Finish
Brushed Nickel
Style
Craftsman;Modern;Modern Craftsman
Option
Damp Rated , Energy Efficient , Energy Star , Title 20
Family
Helm LED
Glass
White
Voltage
120
Number of Bulbs
2 Bulbs
Backplate Height
1.13
Backplate Width
13.63
Bulb Hours
60000
Bulb Type
Module
Depth
3.75
Height To Center of Outlet
7.00
Introduction Date
01/01/2015
Kelvin
3000
Keyword(s)
flushmount;ceiling fixture;ceiling light;led light;energy efficient
Length
14.00
Lumens / Light Output
1345
Material
Steel
Ship Carton Height
7.50
Ship Carton Length
16.38
Ship Carton Width
16.38
Ship Weight
6.01
Special Features
Helm is a uniquely styled series with design flexibility.;This contemporary square fixture has an acrylic diffuser with architectural detail.;Can mount to ceiling or wall.;Dimmable to 10% with many ELV dimmers;1,211 lumens 71.2 lumens/watt per module (sour
Vendor Ship Method
Non UPS Shippable False
Warranty
5-year Limited
Weight
4.63
Wire Included
6 in
Americans with Disabilities Act
Yes
Backplate Depth
13.63
Bulb Base
Module
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Canopy Shape
Square
Certified Listed Location
Damp Location Listed
Construction Material Main Part
Construction
Country of Origin
CN
Dark Sky
No
Design Series
No
Dimming Compatability
Lutron_Nova T NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600
Dimming Protocol
ELV/Reverse Phase
Dimming Range
10%
Energy Efficient
Yes
Energy Star
Yes
Finish Type
Plated
Frequency Rating
60 Hz
Glass Height
3.625
Glass Shape
Diffuser
Glass Width
11.8125
Grounded Convenience Outlet included
No
JA8
No
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
17
Lens Shade Material
Acrylic
Lumens per Watt
39.80
Mount location
Wall Or Ceiling
MTO
No
Operating Temperature Celcius Max
30 °C
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Room Type
Hall & Foyer;Bedroom
Safety Rating
cCSAus
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
No
Weight of Fixture Exceeds NEC Limits
No
Width Diameter
14 in sq.
Finish
Additional options that would change other selections
Included Items
Bulbs: (2) x 17 Watt Module
