10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Round; Remote Driver (S11601)
$36.32
Call For Price
Enlarge Image
Add to Cart
Description:

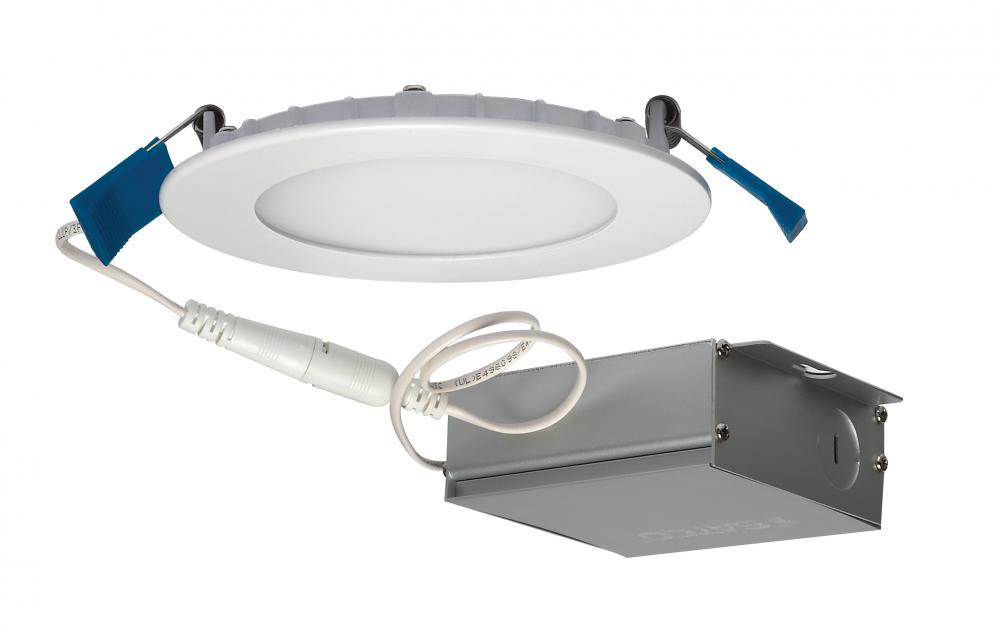

10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Round; Remote Driver
Availability:
  • Manufacturer has 8 items available.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 0.94"
right arrow Width: 4.75"
Additional Details:
right arrow Finish: White
right arrow Category: Recessed
right arrow Sub Category: Direct Wire
right arrow Additional Info: Integrated j-box for direct wire installation
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: Cool White
right arrow Bulb Shape: Integrated LED
right arrow Bulb Type: LED
right arrow Diameter: 4.75
right arrow Dimmable: Yes-Dimmable
right arrow Harmonized Codes: 9405.11.8010
right arrow Lumens: 670L
right arrow Ship Carton Height: 5.39
right arrow Ship Carton Length: 5.39
right arrow Ship Carton Width: 2.13
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Air Tight: Yes
right arrow Amps: 0.083A
right arrow ANSI Base: Integrated
right arrow BAA Compliant: No
right arrow Beam Spread: 108
right arrow CA Prop-65: Lead
right arrow Carton Cubic Feet: 0.0358
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: California T24 2016 - 2022 JA8 Listed
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: California T24 Listed
right arrow Ceiling Aperture: 4.25 in. Cutout
right arrow Clearance Height: 2
right arrow Connection: Direct Wired
right arrow Country Of Origin: China
right arrow CRI: 90+
right arrow Dimmable Down To: 100 to 10 percent
right arrow Dimming Type: Forward Phase or Reverse Phase or Phase Selectable or Triac
right arrow Efficacy: 67.00 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: Diameter: 4.75 inches, Height: 0.94 inches
right arrow Feature 2: Dimmable
right arrow Feature 3: Wet location rated for indoor use
right arrow Feature 4: 4000K Cool White Light
right arrow Feature 5: Superior 90 CRI light quality
right arrow Feature 6: 5 year limited warranty
right arrow Feature 7: 670 lumens
right arrow Feature 8: Rated for 50,000 hours
right arrow Feature 9: FCC and RoHS compliant
right arrow Finish Family: White
right arrow Fixture shape: Round
right arrow Has Driver: Yes
right arrow IC Rated: Yes
right arrow Incandescent Equivalent: 60W
right arrow Indoor Outdoor: Indoor
right arrow Installation Notes: **If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
right arrow JA8 Compliant: Yes
right arrow Lens Finish: Frost
right arrow Lens Material: Poly methyl methacrylate (PMMA)
right arrow Long Description: Satco's S11601 10 watt, 4 inch recessed downlight offers a tremendous amount of versatility in multiple applications. Requiring less than one inch of ceiling height, the fixture can be installed in cabinets, basements, and any other areas where space i
right arrow Material: Aluminum
right arrow Max Drywall Thickness: 5/8 in.
right arrow Mounting Procedure: Ceiling
right arrow Operating Temprature: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Power Factor: 0.98
right arrow Quantity In Pack: 1
right arrow Rec Spacing Between Fixtures: 3 ft. to 4 ft.
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: Satco's 10 watt, 4 inch recessed downlight offers a tremendous amount of versatility in multiple applications. Requiring less than one inch of ceiling height, the fixture can be installed in cabinets, basements, and any other areas where space is at a
right arrow Safety Listing: cETLus - Listed
right arrow SDS class: LED_Lamp
right arrow Short Description: 10WLED/DW/EL/4/940/RND/RD
right arrow Sloped Ceiling Compatible: No
right arrow Temperature (CCT): 4000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: Yes
right arrow Trim Color: White
right arrow Wattage Selectable: No
right arrow Weight Lb.: 0.6899999999999999
right arrow Standard Category: Recessed Ltg.
right arrow Standard Subcategory: Other Recessed Ltg.
right arrow Standard Finish: White
right arrow Standard Option: LED , Prop 65 prop65.png
