10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Square; Remote (S11610)
$38.46
Call For Price

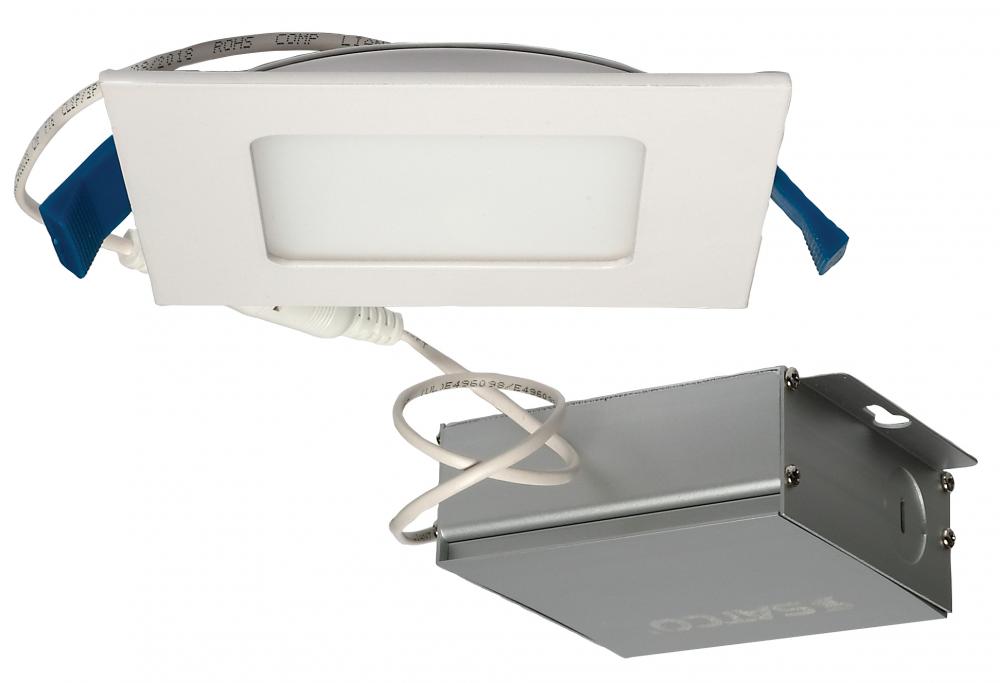

Enlarge Image
Add to Cart
Description:
10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Square; Remote Driver
Availability:
  • Manufacturer has 295 items available.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 0.94"
right arrow Width: 4.75"
Additional Details:
right arrow Finish: White
right arrow Category: Recessed
right arrow Sub Category: Direct Wire
right arrow Additional Info: Integrated j-box for direct wire installation
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: Cool White
right arrow Bulb Shape: Integrated LED
right arrow Bulb Type: LED
right arrow Dimmable: Yes-Dimmable
right arrow Harmonized Codes: 9405.11.8010
right arrow Length: 4.75
right arrow Lumens: 620L
right arrow Ship Carton Height: 5.39
right arrow Ship Carton Length: 6.65
right arrow Ship Carton Width: 2.13
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Air Tight: Yes
right arrow Amps: 0.083A
right arrow ANSI Base: Integrated
right arrow BAA Compliant: No
right arrow Beam Spread: 108
right arrow CA Prop-65: Lead
right arrow Carton Cubic Feet: 0.0442
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: California T24 2016 - 2022 JA8 Listed
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: California T24 Listed
right arrow Ceiling Aperture: 4.125 in. Cutout
right arrow Clearance Height: 2
right arrow Connection: Direct Wired
right arrow Country Of Origin: China
right arrow CRI: 90+
right arrow Dimmable Down To: 100 to 10 percent
right arrow Dimming Type: Forward Phase or Reverse Phase or Phase Selectable or Triac
right arrow Efficacy: 62.00 LPW
right arrow FCC Compliant: Yes
right arrow Finish Family: White
right arrow Fixture shape: Square
right arrow Has Driver: Yes
right arrow IC Rated: Yes
right arrow Incandescent Equivalent: 60W
right arrow Indoor Outdoor: Indoor
right arrow Installation Notes: **If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
right arrow JA8 Compliant: Yes
right arrow Lens Finish: Frost
right arrow Lens Material: Poly methyl methacrylate (PMMA)
right arrow Material: Aluminum
right arrow Max Drywall Thickness: 5/8 in.
right arrow Mounting Procedure: Ceiling
right arrow Operating Temprature: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow Rec Spacing Between Fixtures: 3 ft. to 4 ft.
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Safety Listing: cETLus - Listed
right arrow SDS class: LED_Lamp
right arrow Short Description: 10WLED/DW/EL/4/940/SQ/RD
right arrow Sloped Ceiling Compatible: No
right arrow Temperature (CCT): 4000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: Yes
right arrow Trim Color: White
right arrow Wattage Selectable: No
right arrow Weight Lb.: 0.82
right arrow Standard Category: Recessed Ltg.
right arrow Standard Subcategory: Other Recessed Ltg.
right arrow Standard Finish: White
right arrow Standard Option: LED , Prop 65 prop65.png
