18 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 2700K; 120 volt; Dimmable (S11716)
$43.80
Call For Price
Enlarge Image
Add to Cart
Description:

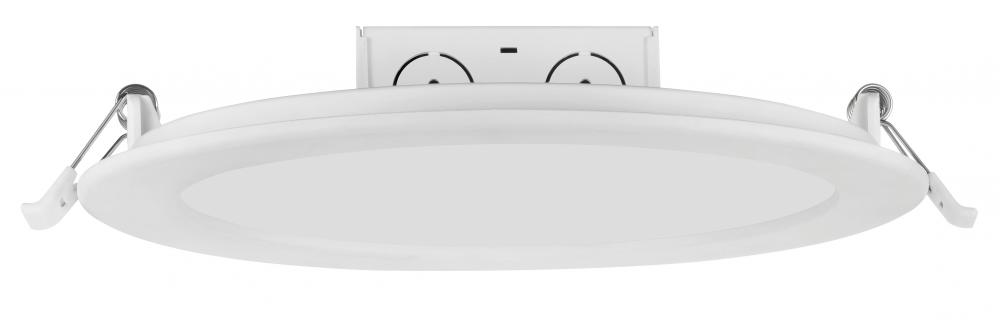

18 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 2700K; 120 volt; Dimmable
Availability:
  • Manufacturer has 4589 items available.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 2.00"
right arrow Width: 8.69"
Additional Details:
right arrow Finish: White
right arrow Category: Recessed
right arrow Sub Category: Direct Wire
right arrow Style: Utility
right arrow Bulb Hours: 40000
right arrow Bulb Kelvin: Warm White
right arrow Bulb Shape: Integrated LED
right arrow Bulb Type: LED
right arrow Diameter: 8.69
right arrow Dimmable: Yes-Dimmable
right arrow Harmonized Codes: 9405.11.8010
right arrow Lumens: 1300L
right arrow Ship Carton Height: 10.04
right arrow Ship Carton Length: 10.04
right arrow Ship Carton Width: 2.74
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Air Tight: Yes
right arrow Amps: 0.150A
right arrow ANSI Base: Integrated
right arrow BAA Compliant: No
right arrow Beam Spread: 100
right arrow CA Prop-65: Lead
right arrow Carton Cubic Feet: 0.1598
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: California T24 2016 - 2022 JA8 Listed
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: California T24 Listed
right arrow Ceiling Aperture: 8.10 in. Cutout
right arrow Connection: Direct Wired
right arrow Country Of Origin: China
right arrow CRI: 90+
right arrow Dimmable Down To: 100 to 10 percent
right arrow Dimming Type: Forward Phase or Reverse Phase or Phase Selectable
right arrow Efficacy: 72.22 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: Canless recess lighting engineered for new constructions, drop ceilings, multi-level constructions and shallow ceilings.
right arrow Feature 2: Fixture dimensional specifications (in inches) Height: 2.00, Diameter: 8.69
right arrow Feature 3: Direct Wired installation; Suitable for damp locations, indoor use only
right arrow Feature 4: Integrated LED
right arrow Feature 5: 90 CRI superior quality LED light, rated for 40000 hours, for an energy efficient lighting option
right arrow Feature 6: 5 year limited warranty. See manufacturer website for details
right arrow Finish Family: White
right arrow Fixture shape: Round
right arrow Has Driver: Yes
right arrow IC Rated: Yes
right arrow Incandescent Equivalent: 85W
right arrow Indoor Outdoor: Indoor
right arrow JA8 Compliant: Yes
right arrow Long Description: Satco's S11716, 8 inch round 18 watt LED direct wire edge-lit, ultra-thin, canless recessed fixture makes downlighting convenient to install in multi-level spaces. Dimmable, with superior 90 CRI light in 2700K, this fixture is engineered for new constr
right arrow Material: Polybutylene Terephthalate (PBT) / Polyamide (PA) / Polycarbonate (PC)
right arrow Max Drywall Thickness: 7/8 in.
right arrow Minimum Compartment Size: Diameter: 8.66 in. Height: 2.36 in.
right arrow Mounting Procedure: Ceiling
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temprature: -20C (-4F) to +40C (+104F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Power Factor: 0.96
right arrow Quantity In Pack: 1
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: The 8 inch round 18 watt LED direct wire edge-lit, ultra-thin, recessed fixture makes downlighting convenient to install in multi-level spaces. Dimmable, with superior 90 CRI light in 2700K, this fixture is engineered for new constructions, drop ceilings,
right arrow Safety Listing: cETLus - Listed
right arrow SDS class: LED_Lamp
right arrow Short Description: 18WLED/DW/EL/8/27K/120V
right arrow Temperature (CCT): 2700K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: Yes
right arrow Trim Color: White
right arrow Wattage Selectable: No
right arrow Weight Lb.: 0.88
right arrow Standard Category: Recessed Ltg.
right arrow Standard Subcategory: Other Recessed Ltg.
right arrow Standard Finish: White
right arrow Standard Option: LED , Prop 65 prop65.png
