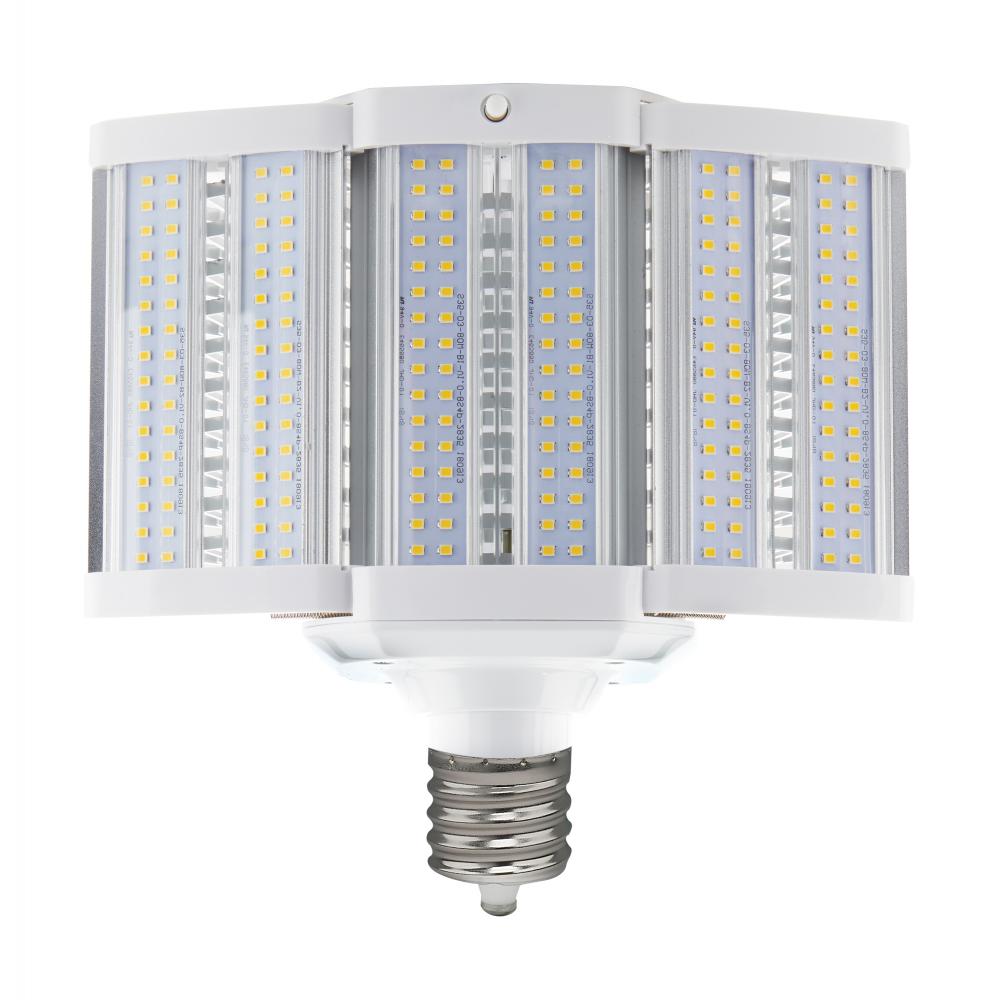

80 Watt LED Hi-lumen shoe box style lamp for commercial fixture applications; 5000K; Mogul Extended; (S28932)
$203.74
Call For Price
Enlarge Image
Add to Cart
Description:
80 Watt LED Hi-lumen shoe box style lamp for commercial fixture applications; 5000K; Mogul Extended; Type B Ballast Bypass;100-277 Volt
Availability:
  • Manufacturer has 4 items available.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 4.38"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: HID Replacements
right arrow Volts: 120V-277V
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 5000K
right arrow Bulb Shape: Corncob
right arrow Diameter: 4.38
right arrow EA Length: 10.3
right arrow Harmonized Codes: 8539.52.0091
right arrow Length: 8.77
right arrow Lumens: 10400L
right arrow Shap Carton Width: 5.7
right arrow Ship Carton Height: 6.45
right arrow Ship Weight: 3.52
right arrow Warranty: 5 Year Limited - Hi-Pro
right arrow Weight: 2.42
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 180
right arrow Bulb ANSI Base: EX39
right arrow Bulb Base: Mogul Extended
right arrow Bulb Finish: White
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.2191
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Natural Light
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimmable Down To: 100 to 20 percent
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard; Standard
right arrow DLC ID: PL0NRCV506NZ; PLO20DYP1HZI
right arrow DLC Primary Use: Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B); Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
right arrow Efficacy: 130.00 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: Natural light
right arrow Feature 2: 250W HID Replacement
right arrow Feature 3: Damp rated for outdoor use
right arrow Feature 4: Corncob shape; White finish
right arrow Feature 5: L:8.77 inches; D:4.38 inches
right arrow Has Emergency Battery: No
right arrow HID Equivalent: 250W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 400W
right arrow Indoor Outdoor: Outdoor
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IOT Enabled: Yes
right arrow IP Rating: IP64
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp Filament: LED
right arrow Lens: Yes
right arrow Lens Finish: White
right arrow Lens Material: Plastic (PS)
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's 80W LED shoe box style lamp offers natural light and a 180 degree beam spread. The lamp features dimmability with optional control modules, built-in surge protection and a Mogul extended base. With a high lumen count and damp outdoor ratin
right arrow Material: Aluminum / Plastic
right arrow Minimum Compartment Size: Length: 11 in. Width: 9.2 in. Height: 11 in.
right arrow NSF Approved: No
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -30C (-22F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 20
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's second generation Hi-Pro shoebox lamps have just gotten a whole lot smarter! The lamps are suitable for new lamps and metal halide replacements. The Gen2 shoebox lamp offers higher efficiency, improved heat dissipation, and a port for moun
right arrow SDS class: LED_Lamp
right arrow Short Description: 80W/LED/HID/SB/5K/EX39
right arrow Specification Notes: This is not to be used with a ballast
right arrow Style: Utility
right arrow Surge Protection: Built-in surge protection - 4KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Total Harmonic Distortion: 15.10%
right arrow Wattage Selectable: No
right arrow Watts: 80W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Lumens: 3300+
right arrow Standard Kelvin: 4501-5000
